Optimizing race car performance demands superior chassis rigidity. Learn practical methods, materials, and testing for structural integrity improvements.

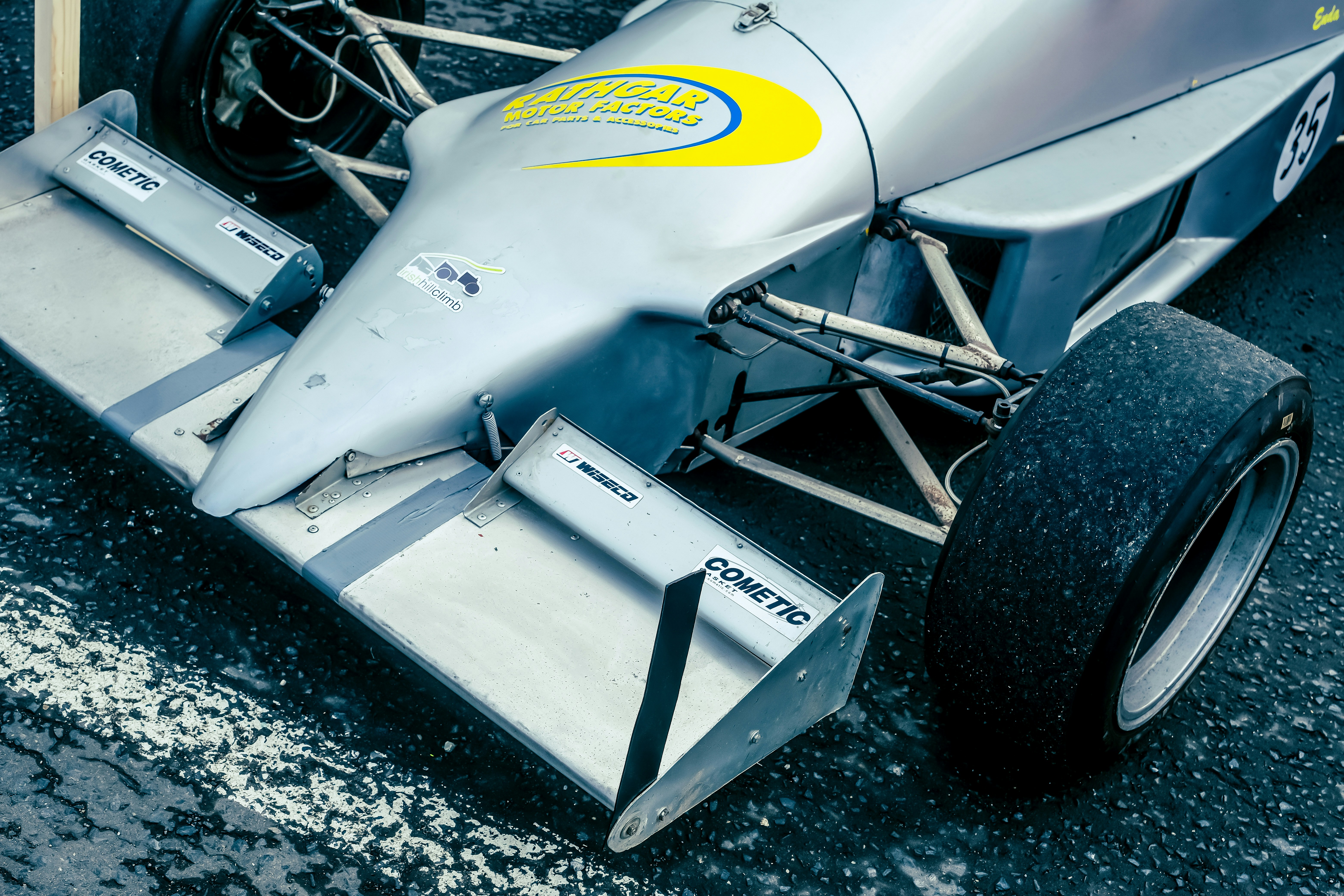

In the world of competitive motor racing, the quest for speed and control is relentless. Every component plays a critical role, but few are as fundamental as the chassis. A race car’s structural backbone, the chassis dictates how effectively power is transmitted, how suspension forces are managed, and ultimately, how the car handles at its limits. My experience in various racing series, from amateur weekend warriors to professional teams across the US, has shown me firsthand the profound impact of a well-engineered structure.
Overview
- Chassis rigidity is foundational for precise handling and effective power delivery in race cars.
- A stiff chassis ensures predictable suspension action, allowing engineers to fine-tune vehicle dynamics accurately.
- Common methods for increasing rigidity include adding tubes, bracing, and improving welding quality.
- Material selection, like chromoly steel or aluminum, significantly influences the strength-to-weight ratio and overall stiffness.
- Proper structural analysis and meticulous fabrication are crucial for achieving desired rigidity targets.
- Testing, both static and dynamic, validates improvements and informs further structural modifications.
- Excessive rigidity without proper engineering can lead to component stress and undesirable handling characteristics.
Why Chassis rigidity Matters for Performance
A race car is a complex system, and its performance hinges on predictable behavior. The chassis serves as the foundation upon which all other systems are mounted. When the chassis flexes under load, it introduces unintended variables into the suspension geometry. Imagine a suspension arm pushing against a mount that itself is moving; the effective motion of the wheel is no longer solely dictated by the suspension components. This leads to inconsistent handling, making it harder for the driver to feel the limits and for engineers to make precise setup changes.
A stiff chassis ensures that suspension forces are transmitted directly to the tires, maintaining desired alignment and camber under braking, acceleration, and cornering. This allows the suspension to work as designed, providing optimal grip and driver feedback. Without adequate chassis rigidity, even the most advanced suspension system cannot perform to its potential. It’s about providing a stable platform where every input translates directly into controlled motion, not parasitic flex.
Material Choices and Their Impact on Structural Integrity
The selection of materials plays a pivotal role in achieving desired structural performance and controlling weight. Steel remains a popular choice due to its strength, weldability, and cost-effectiveness. Mild steel tubing, often used in entry-level racing, offers good basic strength. However, for higher performance applications, chromoly steel (4130 alloy) is preferred. Chromoly provides a higher strength-to-weight ratio, allowing for thinner walls and lighter structures while maintaining or improving stiffness. It requires specific welding techniques but is a staple in professional motorsport.
Aluminum is another option, often seen in monocoque designs or spaceframe elements where lightweight is paramount. Its excellent strength-to-weight ratio is a major benefit, but its fatigue characteristics and specific welding requirements differ significantly from steel. Composite materials like carbon fiber are at the forefront of high-end racing. These offer incredible stiffness and strength at minimal weight but come with much higher costs and specialized fabrication processes. Understanding the stress paths and loads helps in selecting the right material for each part of the structure.
Practical Methods for Boosting Chassis rigidity
Improving chassis rigidity involves a combination of design principles and meticulous execution. One fundamental approach is seam welding the entire chassis. This process involves welding every seam where two panels join, significantly reinforcing the sheet metal structure. It essentially turns spot-welded panels into a solid, unified component. Integrating a roll cage is another critical step. A well-designed roll cage not only provides safety but also acts as a primary structural element, distributing loads and dramatically increasing torsional stiffness.
Strategic bracing and gusseting further stiffen specific areas. Adding diagonal braces across large unsupported spans or reinforcing corners with triangular gussets prevents localized flex. For example, bracing suspension pickup points directly back to the roll cage or main chassis members reduces flex at these critical load paths. Panel stiffening, such as adding beads, dimple dies, or additional sheet metal layers, can also make a substantial difference in flat areas prone to flexing. Every added tube or plate must be carefully considered for its contribution to stiffness versus its weight penalty.
The Role of Measurement and Testing in Validating Chassis rigidity
Achieving optimal chassis rigidity is not guesswork; it relies on empirical data and validation. Torsional testing is a standard practice. This involves fixing one end of the chassis and applying a known twisting force to the other end. By measuring the degree of twist, engineers calculate the torsional stiffness in units like foot-pounds per degree. This provides a quantifiable metric for comparison and improvement. Strain gauges are also used during testing, both statically and dynamically, to monitor stress and flex in specific areas of the chassis under load.
Computer-aided engineering (CAE) tools, particularly Finite Element Analysis (FEA), are invaluable. Before a single cut is made, FEA simulations predict how a proposed chassis design will behave under various load conditions. This allows engineers to identify weak spots, optimize material use, and refine the design digitally, saving significant time and resources. Post-build, physical testing validates the simulations. This iterative process of design, simulation, fabrication, and physical testing ensures the desired level of stiffness is achieved, supporting the overall performance goals of the race car.
